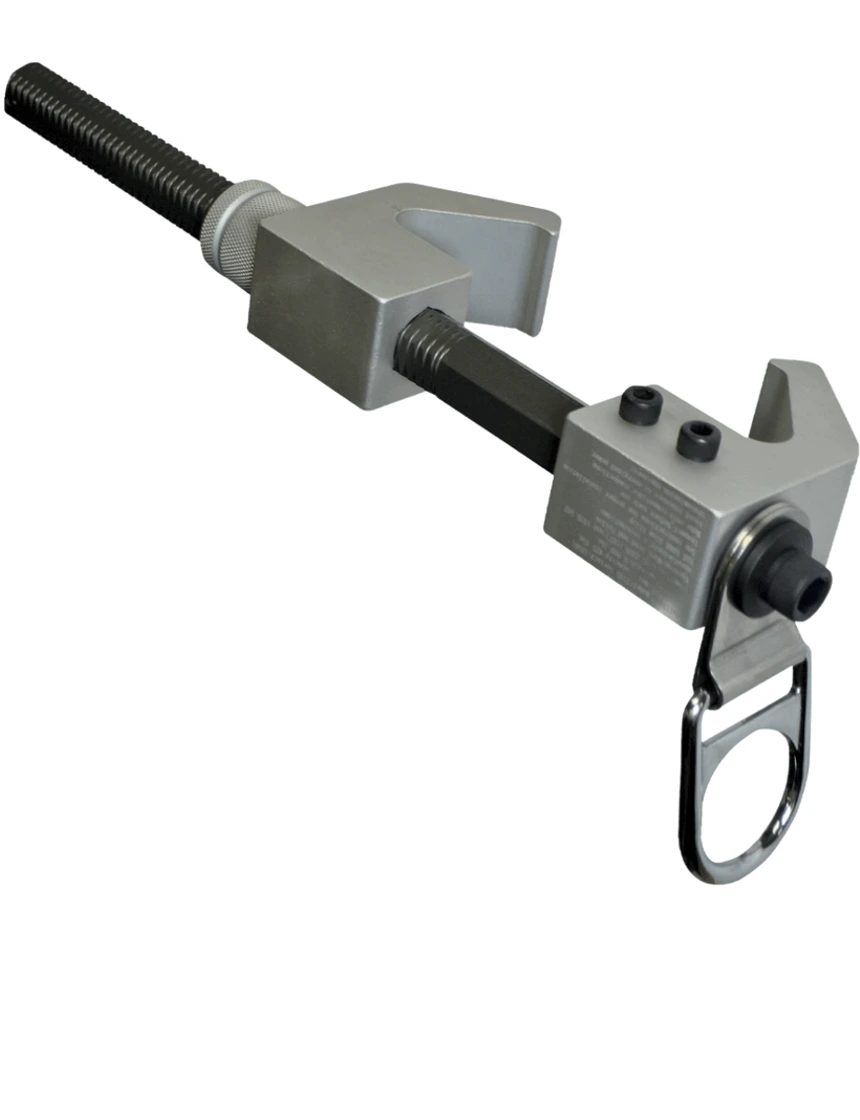

FallTech 7535 12¾" Vertical Beam Anchor for Fixed Locations

Secure a dependable, fixed tie-off on structural steel with the FallTech 7535 Vertical Beam Anchor. Purpose-built for stationary anchorage on I-beams, this clamp-style anchor uses a threaded aluminum crossbar and jaws for precise sizing and a rock-solid hold—ideal for permanent installation in high-traffic work areas.

Key Features

• Fine-adjustment control — threaded aluminum crossbar and jaws with knurled rings for fast, accurate sizing.
• Wide fit range — single-jaw adjustment fits beam flanges from 4-1/2" to 12-3/4" wide and up to 2-1/4" thick.
• Fixed-position anchorage — engineered for permanent installation on vertical or horizontal I-beams.
• Low-maintenance design — durable materials stand up to daily use in industrial and construction environments.

Performance & Compliance

• Static strength: minimum 5,000 lb
• ANSI user capacity: 130–310 lb
• OSHA user capacity: 130–425 lb
• Standards: ANSI Z359.18-2017; OSHA 1926.502 & 1910.66

Materials & Construction

• D-ring: plated alloy steel; 5,000 lb min. static strength
• Crossbar: aluminum alloy
• Clamp jaws: aluminum alloy
• Anchor type: I-beam / clamping (fixed position)

Why Choose the FallTech 7535?

• Set it and rely on it — fixed-position design keeps your anchor exactly where you need it.
• Precise, repeatable fit — knurled adjustment rings help dial-in secure clamping on different beams.
• Jobsite tough — aluminum and steel components resist wear in demanding conditions.
• Compliance made easier — built to meet key ANSI and OSHA fall-protection requirements.

Ideal For

• Permanent tie-off points on structural steel
• Fixed anchorage for maintenance zones and production lines
• Industrial facilities and commercial construction

Equip your crew with a durable, compliant, and fixed-position I-beam anchor. The FallTech 7535 12¾" Vertical Beam Anchor delivers precise adjustment and proven holding strength for dependable fall protection on steel.
