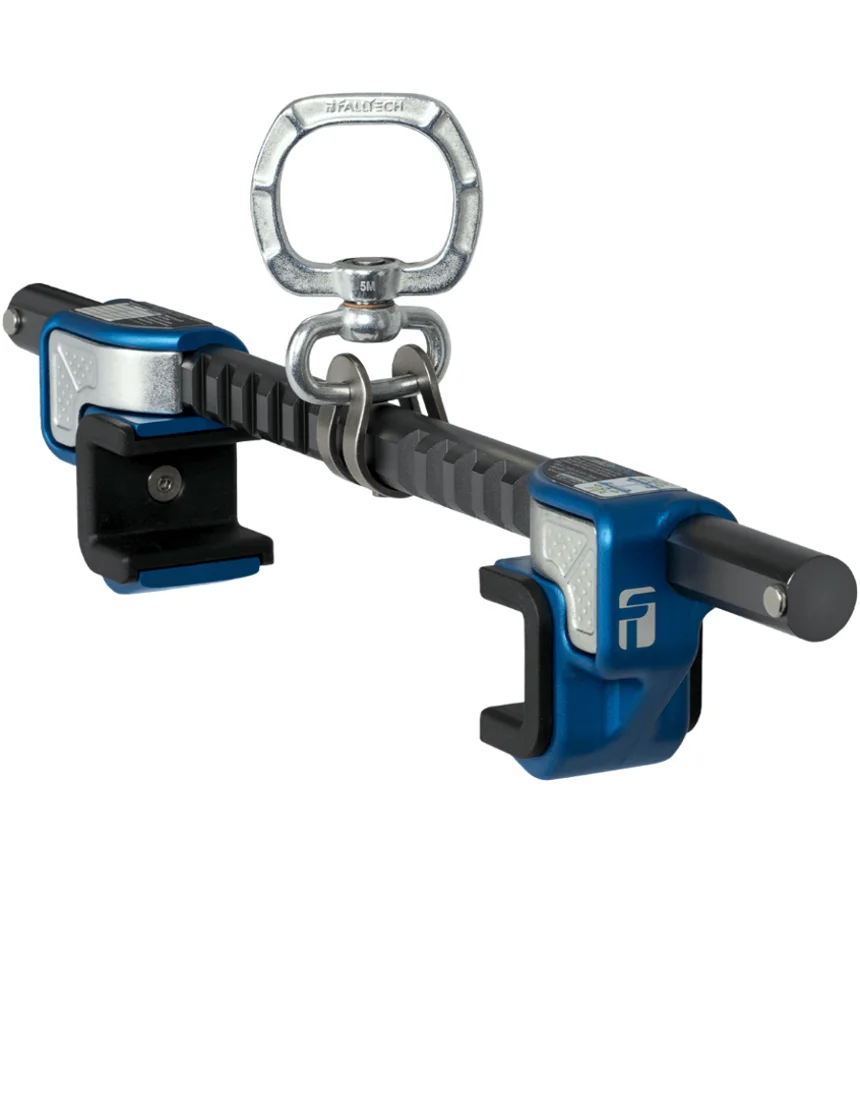

FALLTECH BEAMLOCK™ ANCHOR, DUAL ADJUSTMENT, 4" TO 14"
FallTech BeamLock™ Anchor, Dual Adjustment, 4" to 14"
Item #: FP7540A14
Item #:FP7540A14
MPN #:7540A14
FALLTECH BEAMLOCK™ ANCHOR, DUAL ADJUSTMENT, 4" TO 14"
FallTech BeamLock™ Anchor, Dual Adjustment, 4" to 14"
Item #: FP7540A14
|
Quantity
1-4 |
Quantity
5-9 |
Quantity
10+ |
|---|---|---|
|
$340.95
|
$324.95
|
$309.15
|
Quick Facts:
- Includes two sizes of replaceable wear pads: traditional short wear pads for all applications and new long wear pads for a true hands-free, snag-free walking experience in trailing applications
- Features aluminum crossbar and steel clamping jaws with wear pads
- Fits beam flanges from 4" to 14" wide and up to 1-1/4" thick.
- Dual adjusting jaws include concealed locking thumb latches
- Alloy steel D-ring remains centered on crossbar
- For temporary mobile use on horizontal I-beams
- Complies with ANSI Z359.18-2017
|
Quantity 1-4
|
Quantity 5-9
|
Quantity 10+
|
|---|---|---|
|
$340.95
|
$324.95
|
$309.15
|
Description
FallTech 7540A14 BeamLock™ Anchor — Dual Adjustment, 4" to 14"
Get mobile, secure tie-off on horizontal I-beams with the BeamLock™ 7540A14. Dual-adjusting jaws and replaceable wear pads deliver confident clamping and smooth trailing for efficient fall protection.
Key Features
- Dual adjustment—jaws feature concealed locking thumb latches for fast, secure sizing.
- User-trailing mobility—engineered for temporary, mobile use along horizontal I-beams.
- Wide fit range—accommodates beam flanges from 4" to 14" wide and up to 1-1/4" thick.
- Centered connection—alloy-steel D-ring remains centered on the crossbar to help maintain lifeline orientation.
- Replaceable wear pads—includes traditional short pads and extended long pads for a true hands-free, snag-free walking experience.
Performance & Compliance
- Static strength: 5,000 lb minimum
- ANSI user capacity: 130–310 lb
- OSHA user capacity: 130–425 lb
- Standards: ANSI Z359.18-2017; OSHA 1926.502 & 1910.66
Materials & Construction
- Crossbar: aluminum alloy
- D-ring: plated alloy steel
- Wear pads: nylon, replaceable (short and long)
Choose the BeamLock™ 7540A14 for a compact, compliant I-beam anchor that combines quick setup, smooth trailing, and durable, replaceable wear components—ideal for steel erection, industrial maintenance, and general construction.
